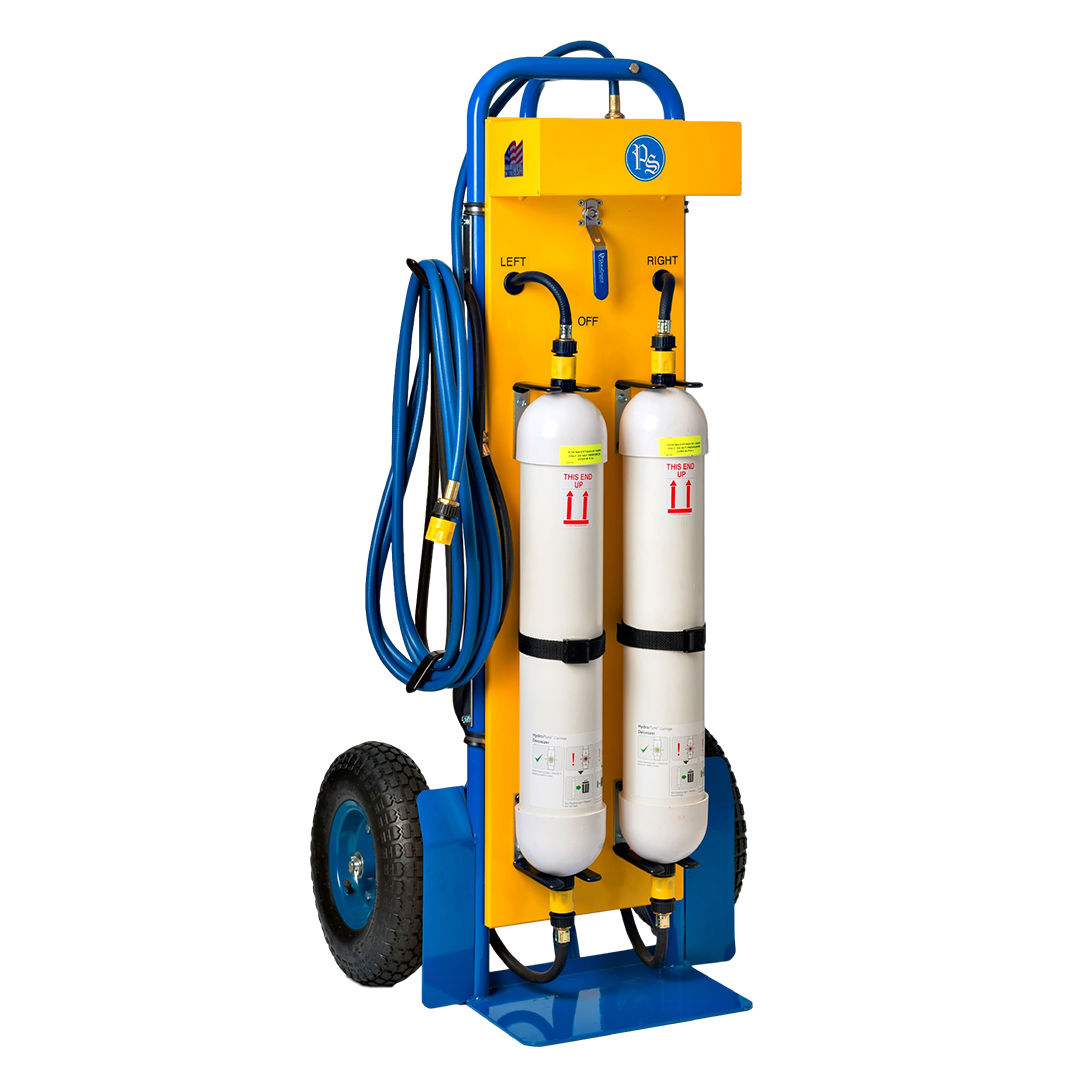

HydroPure™ Mobile Dual Deionizer System
Mobility and twice the capacity.
Perfect for these applications |
Forklift
Scrubbers
Aerial Access
Buggies
Marine
Ease of Operation
This system comes with everything needed to produce pure water straight from the tap. It operates at full-line pressure, dispensing purified water directly from the deionizer. The cartridges can be replaced quickly without the need for tools, and the included 20ft output hose provides maximum flexibility and convenience for watering.
High Capacity
Each system uses two HydroPure™ cartridges, which are each rated for 600 gallons (2400 liters) of pure water* to provide extra deionization capacity. Only one cartridge is used at a time; when it becomes exhausted, you simply turn the handle to activate the second cartridge. You can replace the exhausted cartridge at your convenience.
*Actual output varies with tap water quality.
Exclusive Purity Light Indicator
The dual-colour light indicator signals when it’s time to change the cartridge, and no light means the batteries of the purity light should be changed. The system comes with two D-cell batteries that last up to two years, eliminating the need for an AC power source. This design keeps electricity and water separate, ensuring greater safety for employees.
Exclusive Purity Light
A conductivity meter continuously monitors the output water and signals when it is time to change the HydroPure cartridge.
Why HydroPure Mobile Dual Deionizer
The Mobile Deionizer System is designed to bring pure, battery-ready water right to where you need it. Originally designed to be used with diesel locomotive starter batteries, it can be used wherever a mobile source of deionized water is needed.
Durable & Easy to Maneuver
Built with a sturdy steel frame and rugged tires, this hand truck ensures easy and reliable transportation throughout your yard.
High Capacity
A single cartridge will produce an average of 600 gallons of purified water. The amount will vary with the quality of the incoming tap water, from as much as 1,500 gallons to as little as 250. Most battery manufacturers recommend that water should have no more than 50 parts per million total dissolved solids to get full battery life.
Low Cost
Cartridges are available for a fraction of the cost of distilled water, enabling battery users to produce their own pure water for less money than it would cost to buy it.
Pressurized System
Unlike some lab-type systems, the HydroPure Cartridge takes full-line pressure up to 80psi. So the water flow is fast enough to use directly with the Battery Watering Gun.
Double-up the Capacity
Instead of one Deionizer cartridge, the dual Deionizer has two cartridges side by side. When one Deionizer cartridge needs to be replaced, turn the handle to activate the second cartridge.
System Compatibility
This cart is designed without built-in water storage, giving you flexibility in how you use it. Pair it with any Philadelphia Scientific Battery Watering Gun, or use it to fill our water tanks and carts for seamless operation with single-point watering systems like the Water Injector System™ or Stealth Watering System™.
Purity Chart
The following chart can be used to determine how many gallons of pure battery water
can be obtained from one cartridge based on the purity of the incoming tap water.
Purity LevelTotal Dissolved Solids**Cartridge Capacity |
|
Good PPM* 50 75 Grains 3 4 uS/cm 28 42 U.S. Gallons 1440 960 Liters 5,451 3,634 |
|
Average PPM* 100 120 150 Grains 6 7 9 uS/cm 56 67 84 U.S. Gallons 720 600 480 Liters 2,725 2,271 1,817 |
|
Poor PPM* 200 250 Grains 12 15 uS/cm 112 140 U.S. Gallons 360 288 Liters 1,363 1,090 |
|
**TDS: Total Dissolved Solids in the water |
Technical Specifications
|
Input / Operating Pressure |
< 80 psi / < 5.52 bar |
|
Flow Rate |
0.5 gpm with the provided restrictor / 1.89 lpm |
|
System Exposure Temperature |
35° to 160°F / 2° to 71°C |
|
Power Source |
For Purity Light 3 VDC 2xD-Cell |
|
Purity Light Setting |
50 ppm total dissolved solids |
|
Input Hose Size |
3/8 in / 1.3 cm |
|
Input Hose Length |
10 ft / 3.0 m |
|
Output Hose Size |
3/8 in / 1.3 cm |
|
Output Hose Length |
20 ft / 6.0 m |
|
Weight |
81 lb / 36.74 kg |
|
Product Height |
50 in / 127 cm |
|
Product Length |
17.5 in / 44.45 cm |
|
Product Width |
21 in / 53.34 cm |
|
Capacity |
600 gallons / 2270 litres |
|
Wheel Size |
13 in / 33.0 cm |
|
Wheel Type |
Ball Bearing |
Resources
Compatible With
FAQs
I have installed the HydroPure Deionizer, but the purity light is flashing red. Why is this?
Before first use, run 10 gallons / 40 litres of water and check again.
If you are using the deionizer to fill a watering cart or a bucket, be sure to have the flow restrictor connected to the end of the output hose. The water needs enough time to interact with the resins inside the cartridge to deionise effectively.
If the problem persists, remove the purity light from the deionizer and leave it to dry in open air for 30 minutes. If the light is still flashing red in the open air, you will need to replace the purity light.
If the purity light flashes green in the open air and then flashes red when reattached to the cartridge, please get in touch with customer service to help diagnose the issue.
How much water can I expect out of one cartridge?
The capacity of the cartridge is directly related to the purity of the incoming water, or TDS level. To determine what the capacity will be precisely, you must test the incoming water with a TDS meter. Using the Cartridge Output Calculator at the bottom of the page, enter the resulting Parts Per Million data to see how many gallons/litres you will get from your cartridges.
Can I connect the Deionizer to a Water Injector System?
No, the Injector system requires consistent 25-35 PSI to function correctly, which the deionizer cannot produce.
What is the shelf life of the cartridge?
The deionizer cartridge has a shelf life of 5 years.
How long can I extend the length of the output hose?
If connecting to a Stealth system, the maximum length is 100 ft.
If connecting to a Watering Gun (GUN-X, GUN-S, GUN-RR), you must confirm that your flowing water pressure is at least 30 PSI, which will allow you to extend the output hose up to 100 ft.
Related Products

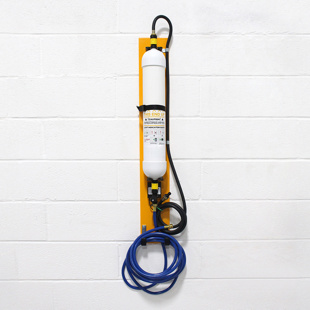

HydroPure™ Deionizer System
Make your own pure battery water on site.

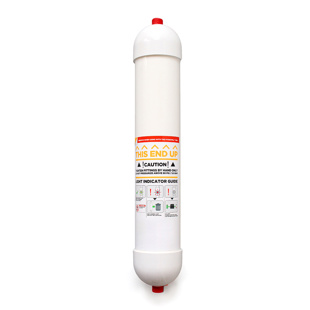

HydroPure™ Deionizer Cartridge
