Perfect for these applications |
Forklift
Scrubbers
Aerial Access
Buggies
Marine

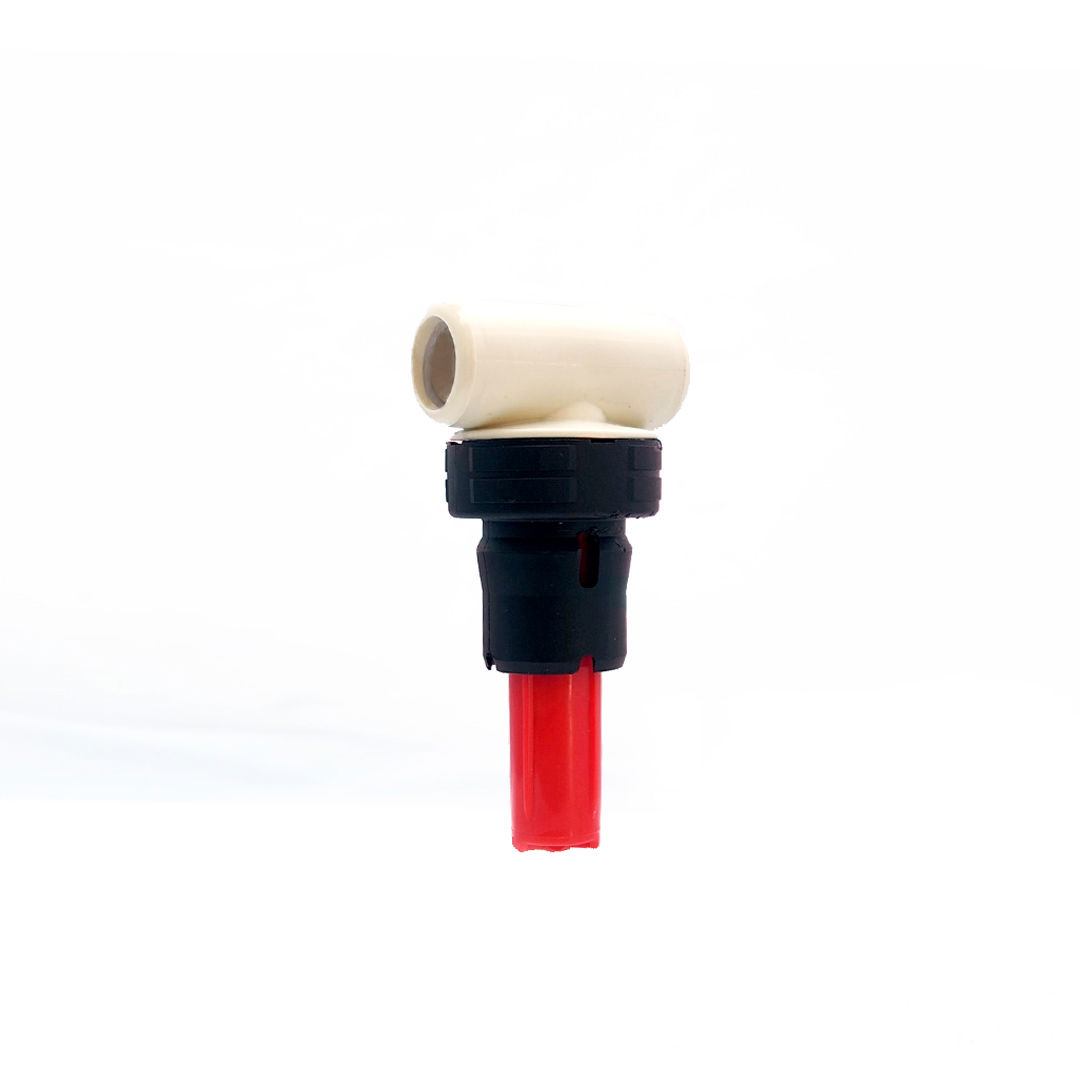

Flame Arrested Design
Safety is our top priority. Flame Arrested Injector System snaps onto the base of Classic Injectors, providing an extra layer of protection against external sparks or flames. It prevents any potential explosions caused by gases inside the battery cells. It addresses the most critical safety concerns outlined in the Cal/OSHA Statute T8-5185(n). This innovation ensures a safer and more secure battery maintenance process for everyone involved.
Accurate Filling
Each Injector has its own precision level-sensing valve enclosed in a protective housing. When the electrolyte level rises to the tip of the Injector, the valve shuts off instantly. There are no floats or delicate exposed parts to stick or break, so the Injectors are unaffected by oil and tar in the cells and can function in extremely cold or hot, dry and abusive conditions.
Effective Operation
The system is simple to use. Once the maintenance engineer or operator connects the system to a dedicated watering cart and opens the valve, the filling process can be completed in under 15 seconds, which is eight times faster than filling a battery with a float-based system. For most warehouses and DCs, that adds to the hours of maintenance saved each week.
Fast Operation
An average 18-cell industrial truck battery can be filled in 15 seconds or less.
Easy Installation
Flexible tubing and the snap-fit base make installation fast and easy.
Compact Design
Low profile allows Injectors to fit on any industrial battery and minimises damage from battery cables. Injectors can snap in and out to enable the inspection of electrolyte levels and specific gravities.
Safe Operation
Prevents direct contact with electrolyte during battery filling and prevents overfilling.
2-Stage Filtration
In addition to the filter screen in the input coupling, each Injector has its own individual filter.
5-Year Warranty
Injectors are made of high-quality engineered plastic that provides maximum chemical resistance and long-lasting durability. There are no exposed parts to break off, even when an Injector is removed from a cell.

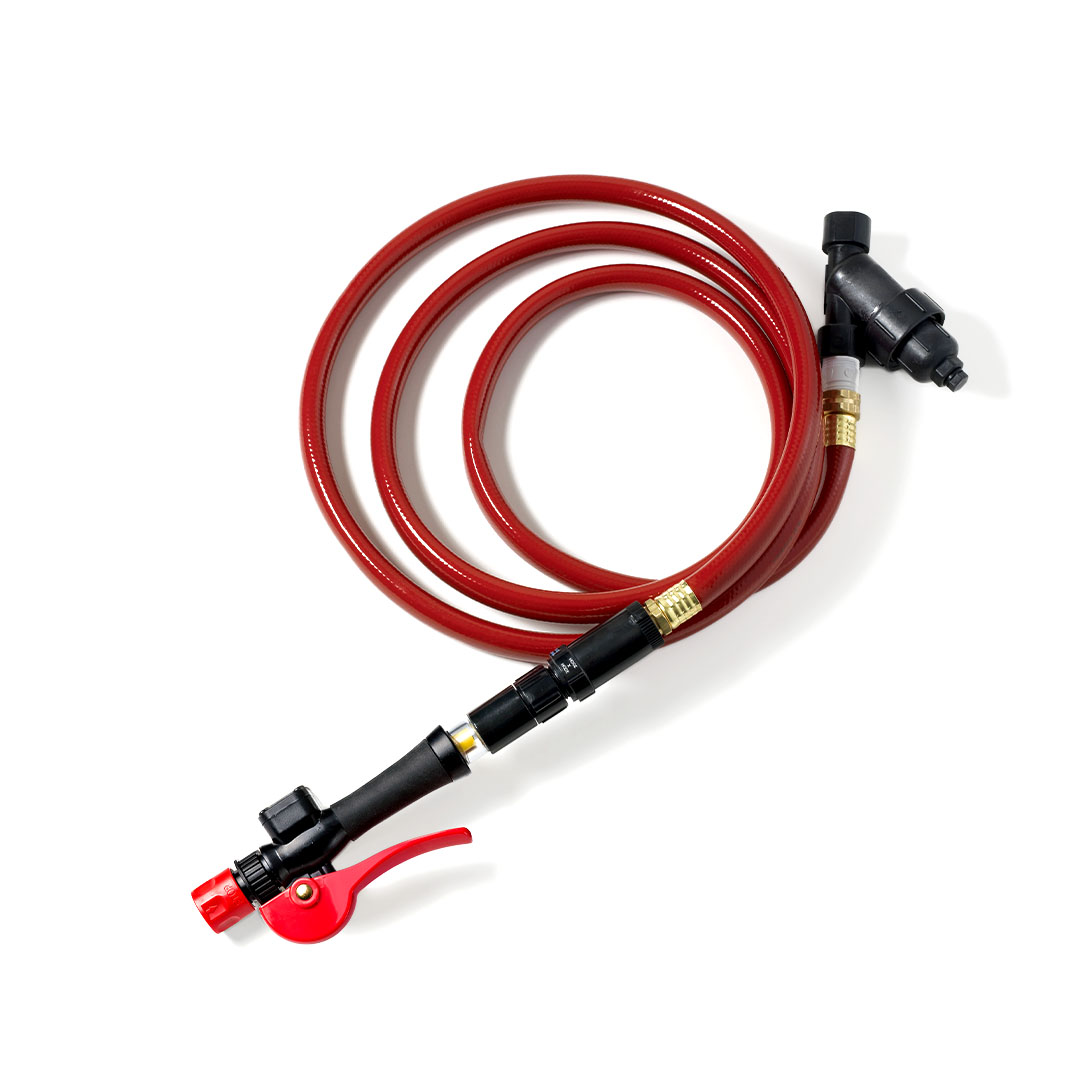

DirectFill
Water Injector System Water Supply
This is a very economical unit if your building's plumbing already has the capacity to power the Water Injector System™. Connect the DirectFill to the wall tap, activate the Instant Valve Pro, wait for the spinner to stop, and disconnect.
The use of our flow checker is required to determine if your building's plumbing can supply adequate flow pressure to use the DirectFill.

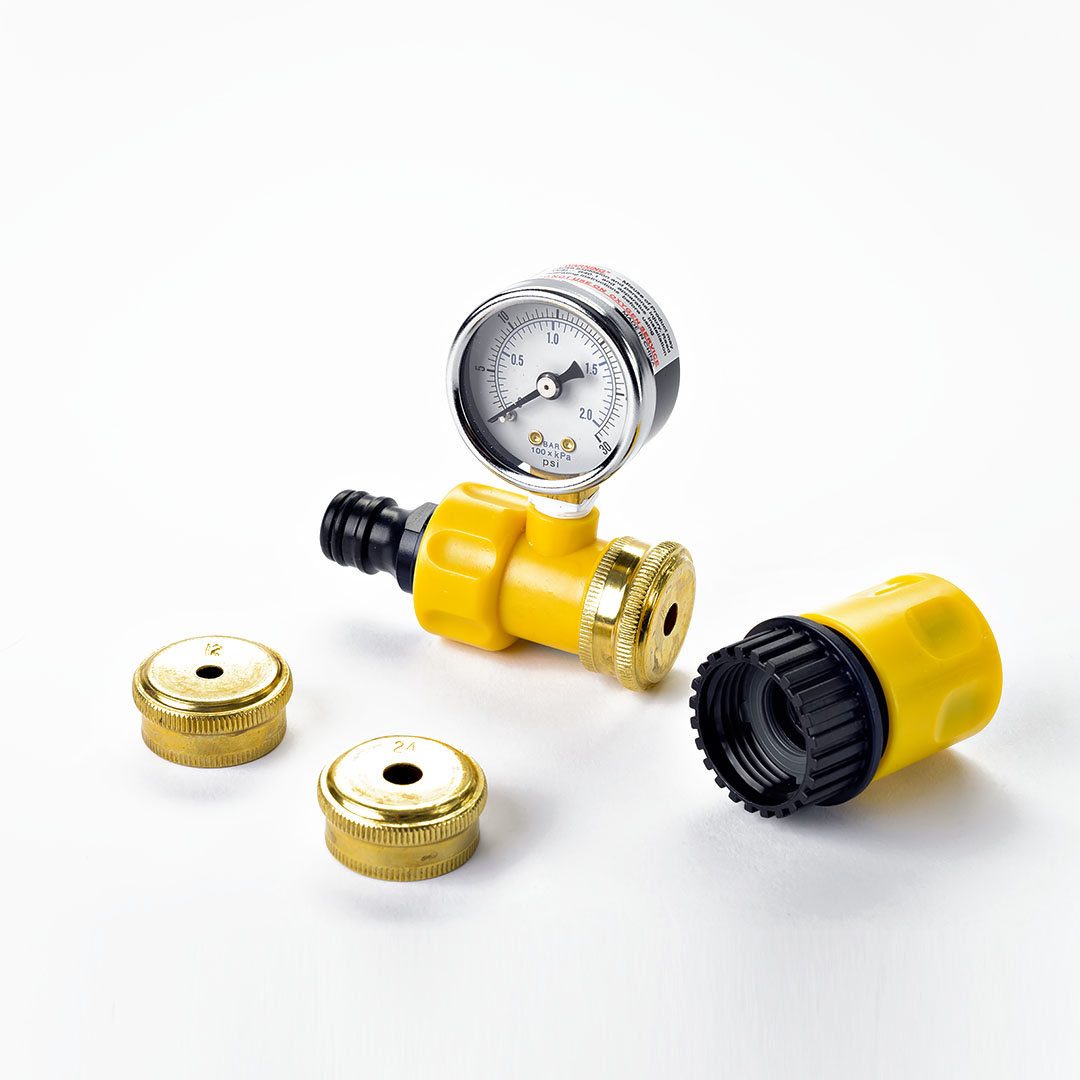

Flow Checker
Water Flow Pressure Checker
The Flow Checker gauge is one of the most critical tools in the service technician's toolbox. It is essential when installing a DirectFill, and can be a necessary aid in troubleshooting Injector Water Supply problems. It makes it fast and easy to determine if adequate dynamic flow pressure is available for the Water Injector System.
Technical Specifications
Resources
Compatible With
HydroCart Mini Watering Cart
HydroCart Max Watering Cart
Water Buffalo
HydroPure Deionizer System
Blinky Watering Monitors
FAQs
Related Products
Water Injector Classic System™
For over two decades, this system has been the world’s fastest and most reliable way to add water to industrial batteries.
Water Injector Spider System™
This system adds increased flexibility and enhanced installation options. It is designed to fit batteries where traditional single point watering systems are hard to fit.

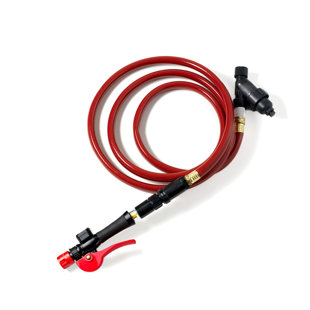

DirectFill
