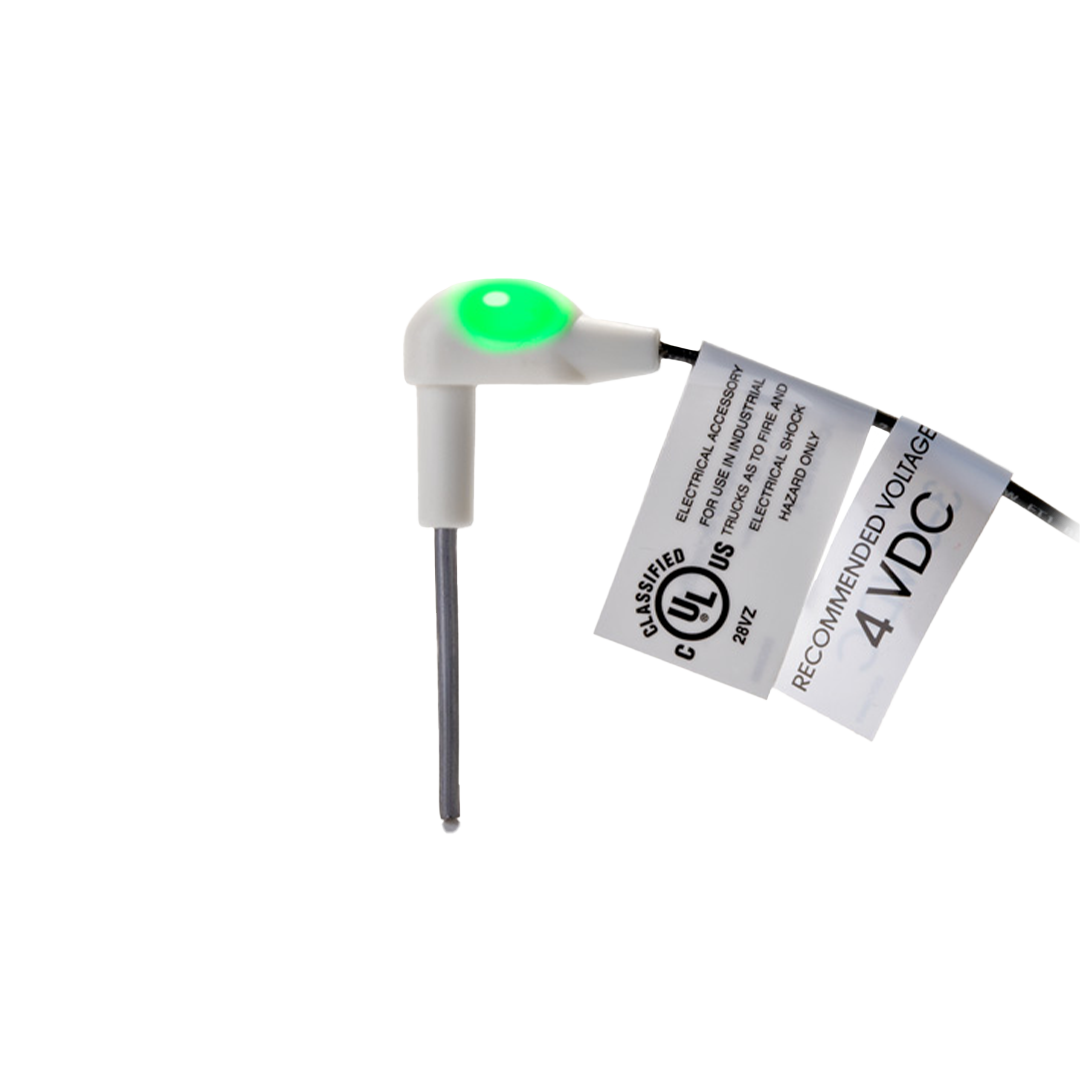

BASIC BLINKY™ BATTERY WATERING MONITOR
The BasicBlinky is the entry-level battery water level monitor. It has provided decades of protection against battery dry-out and remains the industry-leading low-cost battery monitor.
Perfect for these applications |
Forklift
Scrubbers
Aerial Access
Buggies
Marine
Part no. | ACC-BWM3
Cost Effective
Over a battery's lifetime, the BasicBlinky saves a surprising amount of time or labour cost and delivers a rapid return on investment. The cost of a single BasicBlinky is a minimal addition to the purchase price of an industrial battery. Still, it allows watering on a labour-saving 'when-needed' basis instead of a 'hit or miss schedule'. This is even more important with batteries that require less frequent water additions.
Simple LED Feedback
The BasicBlinky monitor makes battery watering simple and reliable. It blinks green when electrolyte levels are correct and turns off when water is needed, even visible from across a dark battery room. This saves operators time by showing exactly which batteries require attention, while preventing unnecessary checks and costly overfilling. With BasicBlinky, you’ll always know when to water and when to leave your batteries alone.
Engineered to be Tough
The BasicBlinky features a patented circuit that eliminates false readings caused by leakage paths or moisture on dirty batteries. Renowned for its reliability, it now comes with an even stronger, more durable body, ensuring accurate monitoring in even the most demanding conditions.
Patented Circuit Design
The BasicBlinky™ has a patented circuit that prevents false indication due to leakage paths and tracking on a dirty or wet battery.
Why Basic Blinky
This is the original watering monitor that revolutionised the checking of electrolyte levels in industrial batteries. The new and improved BasicBlinky is twice as bright as the previous model and features a redesigned body to house the indicator LED. The new body has a lower profile and is more robust, making it more resistant to damage.
Multiple Connection Types
The BasicBlinky can be installed using a range of different battery connectors.
Patented Design
BasicBlinky is an electronic probe that senses the electrolyte in a cell. The low-cost circuit provides a clear indication when the battery needs water.
User Friendly
Easy to understand, instantly clear and actionable indications.
Immediate ROI
Basic Blinky is a low-cost solution that quickly pays for itself through reduced labour and maintenance costs.
Super Bright LED Indicators
A bright flashing green LED means the electrolyte level is OK, while no light means it is time to water the cells.
Easy to Install
A quick and simple installation procedure with reverse polarity protection.
Technical Specifications
|
LED Indications |
Green: Operating OK No Light: Fill Now |
|
System Exposure Temperature |
-29° to 71°C / -20° to 160°F |
|
Operating Voltage |
4.0 VDC Nominal |
|
Forgiveness Zone |
8.0 to 14.0 VDC |
|
Permanent Failure |
16.0 VDC or greater |
|
Nominal Current |
27mA |
|
6V & 12V Monobloc |
Yes |
|
Any Cell Installation |
No |
|
Reverse Polarity Protection |
Yes |
|
Versions |
Standard: LED on the probe |
|
Fuses |
FlexiTap (Q): 1 x Board, 1 x In-connector M4 Screw (S): 1 x Board M10 Bolt (B): 1 x Board |
|
Connection Types |
FlexiTap (Q), M4 Screw (S), M10 Bolt (B) |
|
Flame Retardant |
UL V-0 |
|
Certification |
UL, C-Tick, CE Mark |
|
Weight |
28.1g |
|
Housing Dimensions |
35mm (L) x 12mm (W) x 15mm (H) / 1.38in (L) x 0.47in (W) x 0.59in (H) |
|
Generation |
Third |
|
Warranty |
1 Years |
|
ROI |
9 Weeks |
Resources
FAQs
I've installed the BasicBlinky over 12V, what should I do?
The Basic Blinky has a forgiveness zone of up to 14.0v and hibernates if it is installed over the correct operating voltage. Simply re-install it over the correct voltage.
Related Products

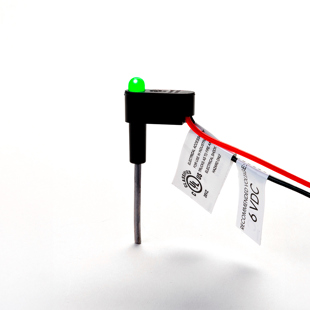

Smart Blinky Battery Watering Monitor
The smartest battery water level monitor with a super bright indicator.
Smart Blinky Pro Battery Watering Monitor
The gold standard for battery water monitors with an audible alarm and installation protection.
Smart Blinky Remote Battery Watering Monitor
Perfect for batteries that don't leave the truck. The LED housing can be edge-mounted for high visibility of the super bright indications.
